Engineered for Extremes

Industrial Platforms & Walkways

Precision-Forged Access Solutions for High-Risk Environments

About Our Systems

Precision-Engineered
Access Infrastructure

At Shiv India Tracom LLP, our Platform and Walkway systems are more than just floorings; they are life-safety critical structures. Designed for the most demanding industrial environments, these systems provide stable, non-slip surfaces for personnel and machinery access.

Our manufacturing process involves high-pressure resistance welding that fuses bearing bars and cross rods into a single, monolithic unit. This results in a platform that offers the highest strength-to-weight ratio in the industry, ensuring maximum load-bearing capacity with minimum structural weight.

Advanced Fabrication

Precision MIG and resistance welding for 100% joint integrity.

Safety Certified

Tested to exceed OSHA and BS 4592 safety load standards.

Engineering
Versatility in Action

Strategic Applications

Our walkways are customized for diverse industry verticals, ensuring specific load requirements and safety protocols are met.

Oil & Gas Rigs

Anti-slip serrated gratings designed for oily offshore environments and refineries.

Power Stations

Maintenance walkways for heavy machinery access and high-voltage transmission areas.

Water Treatment

Corrosion-resistant GI systems for chemical dosing areas and tank access.

Architectural

Modern urban façades, fire escapes, and decorative pedestrian bridges.

Technical Blueprint

Engineering Benchmarks

Every panel is manufactured according to IS 2062 Grade A and BS 4592 standards, ensuring absolute compliance with safety factors.

Load Class A (Pedestrian) to F (Heavy Duty)
Standard Span Up to 3500mm (Unsupported)
Zinc Coating Min 610g/sqm (Hot Dip)

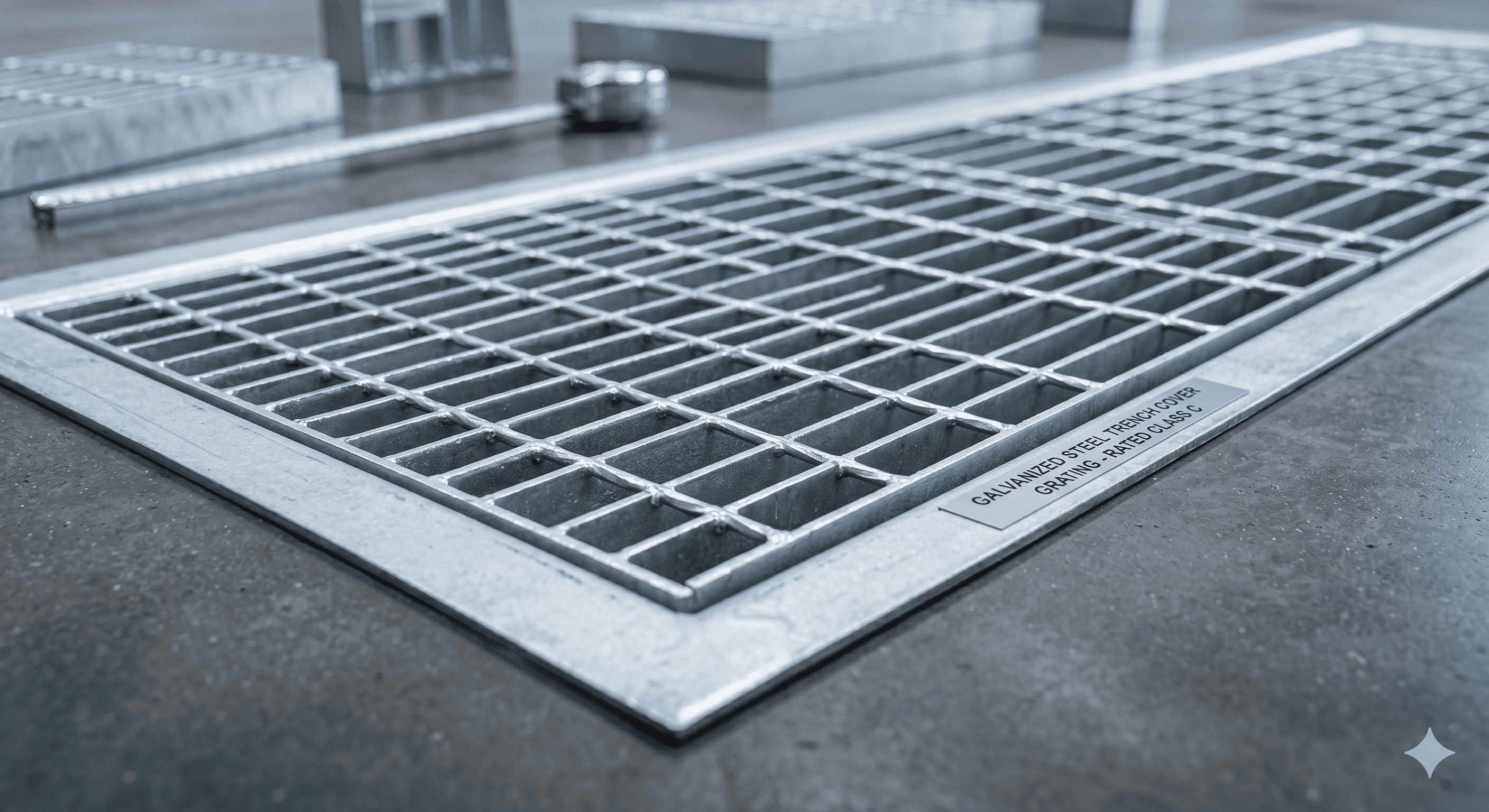

Technical Drawing

Standard Panel Configurations

Grating Type Pitch (mm) Bar Size (mm) Weight (kg/sqm) Application
SP-30-100 30 x 100 25 x 5 to 40 x 5 24.5 - 42.0 General Platforms
SP-41-100 41 x 100 30 x 5 to 50 x 5 19.8 - 36.5 Light Walkways
HD-50-50 50 x 50 65 x 8 to 100 x 10 85.0 - 145.0 Heavy Machinery
ST-Serrated Variable Custom Custom Slippery Areas

Material & Finish Options

Galvanized Steel

Hot-dip treated for lifetime rust protection.

Stainless Steel (304/316)

For pharmaceutical and food processing plants.

Aluminum Alloy

Lightweight solutions for marine and architectural use.

Custom Fabrication

We don't just provide panels; we provide solutions. Our fabrication shop handles:

  • Precise cutouts for pipes and structural columns.
  • Welded toe plates for kick-plate compliance.
  • Built-in handrail attachment points.
  • Custom radius cuts for circular tanks.

Ready to Build Your
Next Access Solution?

Consult with our engineering team for custom drawings and structural calculations.
